Laser-Engraved Illuminated Car Park Sign – Brisbane
The Challenge: Replacing an Aging Diamond-Drag Sign
A Brisbane client recently approached us with a unique challenge. They had an illuminated car park sign—the type where an LED strip lights up an engraved acrylic plate from the edge. The original sign was made using an old-fashioned diamond drag engraver, which creates a characteristic 45-degree slanted pattern that catches and refracts light beautifully.
However, the original sign was worn, and the diamond-drag method is outdated and difficult to replicate with modern precision. The client needed a perfect replacement — identical in appearance to the original, with the same glowing effect, but produced using modern, reliable technology.
They came to Laser Dragon because they needed someone who could understand the optical requirements of the sign, not just someone with a machine.
Our Approach: Reverse-Engineering with Laser Precision
This wasn't a simple "cut and engrave" job. It required understanding how the light travels through the acrylic and how the engraving pattern affects the glow.
Step 1: Understanding the Original
The original diamond-drag engraver created a 45-degree slanted cut. This angle is critical—it acts like a tiny prism, catching the light from the LED strip along the edge and refracting it forward to make the letters and logo glow brightly.
Step 2: Laser Settings & Pattern Development
We used our Trotec Speedy 400 CO₂ laser to replicate this effect. The key was:
- Reverse Engraving: We engraved the back of the acrylic plate, not the front. This means the front face remains perfectly smooth and glass-like, which is essential for a professional, clean look.
- Angle Simulation: Through precise power and speed settings, and a specific engraving pattern, we simulated the 45-degree slanted effect of the diamond drag tool. The laser creates a surface that refracts light in the same way.
- Material Choice: We selected high-clarity cast acrylic, which transmits light evenly and produces the brightest edge-lit effect.
Step 3: Execution
Once the settings were dialled in, the laser engraved the lettering and logo onto the back of the acrylic with micron-level precision. The result was an exact replica of the original sign's glowing effect, but with the consistency and reliability of modern laser technology.
The Result: A Seamless Replacement

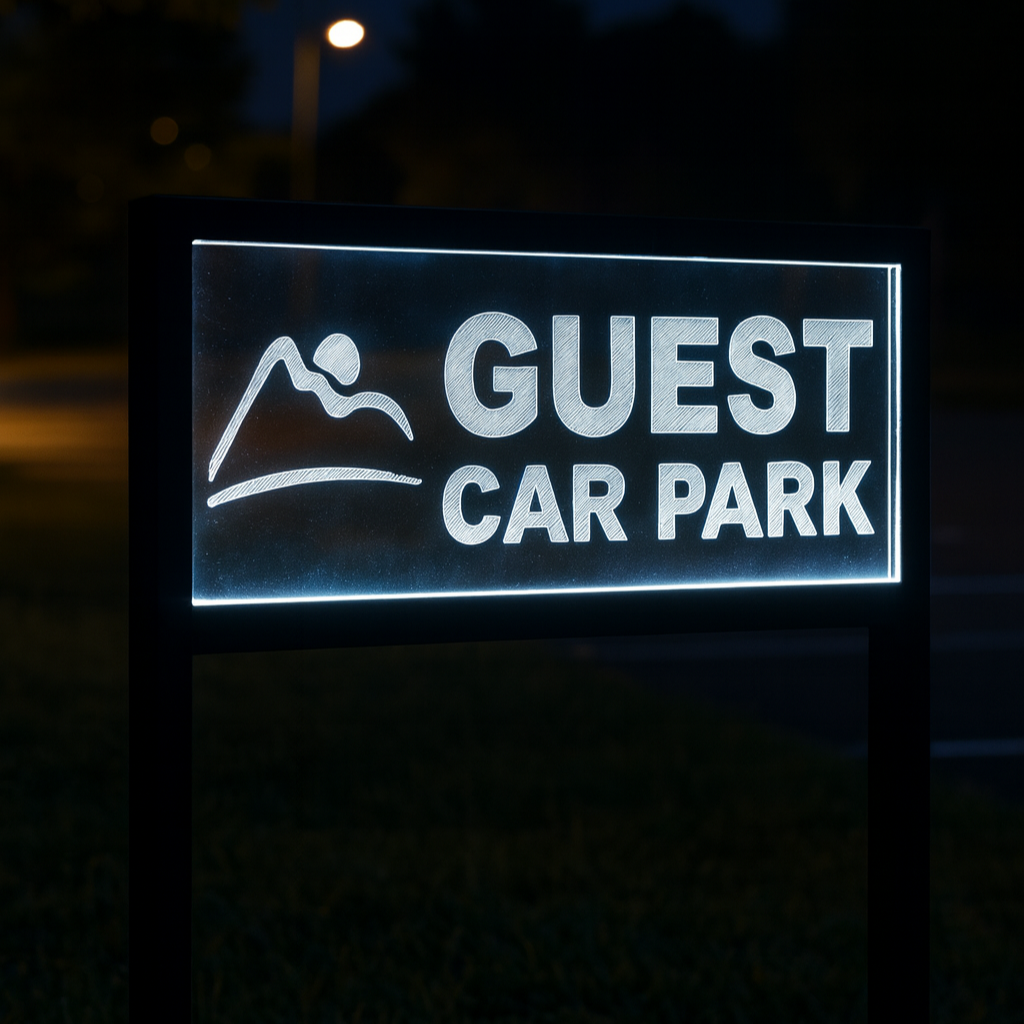

The finished sign was installed back into its frame with the LED lighting. From the front, it looks exactly like the original—smooth, professional, and glass-like. When lit, the letters and logo glow with the same warm, bright appearance the client needed.
The client now has a durable, modern sign that matches their existing infrastructure perfectly, without needing to replace the entire lighting system or housing.
Why This Matters for Your Brisbane Project
This project highlights something important: laser engraving isn't just for cutting shapes. It's a tool for solving specific visual and optical challenges.
If you have:
- An existing illuminated sign that needs replacing
- A desire to create a custom edge-lit acrylic sign (like a personalised name light or business logo)
- A need to match an existing style or pattern
Laser Dragon has the experience to understand your requirements and deliver a result that looks exactly as you envision—because we've done it before.
Applications for This Technique
This reverse-engraving, edge-lit method is perfect for:
- Replacement Signs: Matching existing illuminated signage without replacing the whole unit.
- Personalised Name Lights: Those popular LED base acrylic name signs for desks and bedrooms.
- Business Logo Signs: High-end reception or office signage with a clean, glowing effect.
- Wayfinding & Safety Signs: Illuminated exit signs, directional signage, and more.
- Awards & Trophies: Acrylic awards with an elegant illuminated base.
